Ruijie Reyee-1200M 大戶型 MESH 路由器套裝 RG-EW1200G-PRO + RG-EW1200

RG-EW1200G-PRO


Wireless specifications:

2.4GHz 2*2: maximum rate 400Mbps; 5GHz 2*2: maximum rate 867Mbps

Antenna: External 6dBi non-removable omnidirectional antennas

Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO

Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency integration

Support beamforming

Wi-Fi channel:

2.4GHz Channel： 1,2,3,4,5,6,7,8,9,10,11,12,13

5GHz Channel： 36,40,44,48,149,153,157,161,165

Ports:

1 10/100/1000M WAN port（Auto MDI/MDIX）

3 10/100/1000M LAN ports（Auto MDI/MDIX）

1 blue system LED indicator, 4 network port LED indicators

1 device pairing/factory reset button

1 power input interface

Physical specifications:

Dimensions：220x140x36mm (W×D×H, excluding antennas)

Weight：0.98kg（entire equipment including packaging）

Power supply:

Power specification: DC12V 1.5A

Maximum power: <14W

Certification:

CCC，SRRC

Operating environment:

Operating temperature: 0-45℃

Storage temperature: -40-70℃

Operating humidity: 5%-95%RH (non-condensing)

Storage humidity: 5%-95%RH (non-condensing)

RG-EW1200


Specifications:

2.4GHz 2*2: maximum rate 300Mbps; 5GHz 2*2: maximum rate 867Mbps

Antenna: External 4*5dBi non-removable omnidirectional antennas

Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO

Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency integration

Support beamforming

Wi-Fi channel:

2.4GHz Channel： 1,2,3,4,5,6,7,8,9,10,11,12,13

5GHz Channel： 36,40,44,48,52,56,60,64,149,153,157,161,165

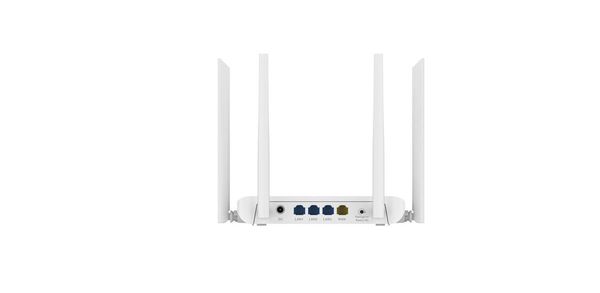

Ports:

1 10/100M WAN port（Auto MDI/MDIX）

3 10/100M LAN ports（Auto MDI/MDIX）

1 system LED indicator, 3 network port LED indicators, 1 Wi-Fi indicator

1 device pairing/factory reset button

1 power input interface

Physical specifications:

Dimensions：182x121x32mm (W×D×H, excluding antennas)

Weight：0.4kg（entire equipment including packaging）

Power supply:

Power specification: DC12V 0.6A

Maximum power: <7W

Certification:

CCC，SRRC

Operating environment:

Operating temperature: -10-45℃

Storage temperature: -40-70℃

Operating humidity: 5%-95%RH (non-condensing)

Storage humidity: 5%-95%RH (non-condensing)



Main features:

Routing mode: PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay

Obtain PPPoE account from the old router

Wi-Fi dual-band separation/ integration

Guest Wi-Fi; smart home Wi-Fi; wireless network isolation

Static DHCP address

Virtual server: port mapping, DMZ, etc.

DDNS: Oray

UPnP

Network security:

Wireless security: WPA-PSK/WPA2-PSK encryption

ARP protection: IP/MAC binding

SSID hiding

Preventing rogue devices (Blacklist/whitelist)

Internet access control

Advanced features:

Reyee Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices

Wi-Fi optimization: Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment

Bandwidth management: hardware NAT, intelligent bandwidth allocation

Auto network inspection, fault diagnosis

Software upgrade: Automatic & manual cloud software upgrade

Management mode:

Local web page


Ruijie Cloud app: iOS version, Android version
